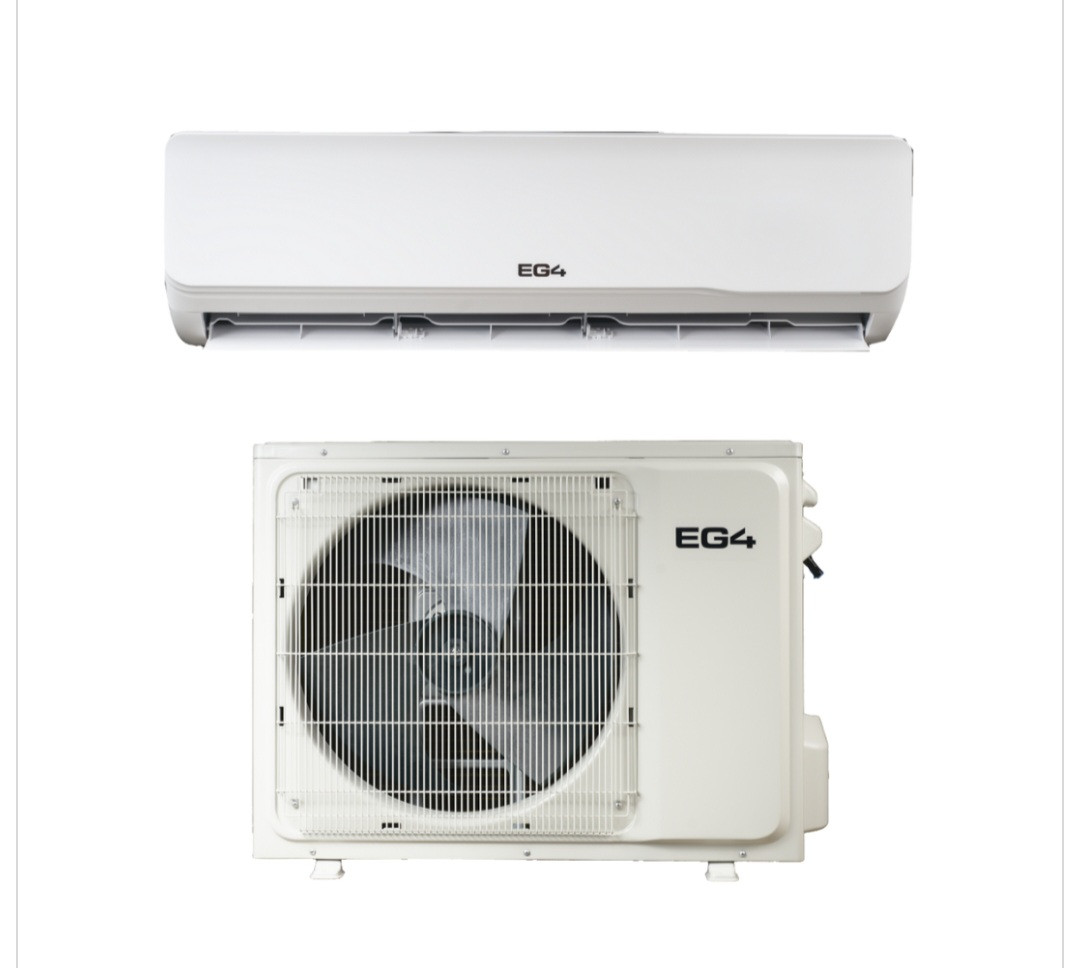

EG4 Hybrid Solar Mini-Split Air Conditioner Heat Pump AC/DC| 24000 BTU | SEER2 21|

  • Image 1
24K HV
150.00 LBS
Calculated at checkout

Product Description

Type a description for this product here...

The EG4 Solar AC is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar Mini-Split AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property.

Its compact size, sleek design, and new Plug-N-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-C-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace.


  • Indoor Head Unit
  • Outdoor Unit
  • Pre-Charged Lineset & Electrical Wire - 16.4Ft
  • LCD Remote Control
  • Installation Accessories

New Plug-n-Cool Technology Easy Do-It-Yourself Installation

Allows for quick and easy connection via the quick-connect self-closing companion valves. Plug-n-cool allows you to install this innovative mini-split system without special tools, equipment, or training. No need to pull a vacuum.


  • Hybrid - AC/DC Driven
    • Power from the grid or PV array - No inverter, battery, or charge controller necessary!
  • 100% energy saving in the daytime.
    • Daytime power comes directly from solar.
  • Plug and Play
    • MC4 Connectors attach directly to PV wire.
  • AC grid power limiter
    • Limit AC power from 0-600W
  • AC power mode,  DC power mode, AC+DC mix power supply (AC/DC Auto Balance)

  • Wide operating temperature  (-10℃ to 58 ℃)


24000BTU AC/DC Air Conditioner/Heat Pump Electrical Specifications Rated Voltage 208VAC-230VAC | 90VDC-380VDC Rated Current AC: 10.2A-9.2A | DC: 12A-5.53A VOC of PV <380V ISC of PV <12A Frequency 60Hz Minimum Circuit Ampacity 16.33A Maximum Fuse Size 20A Maximum Starting Current 6A Rated Cooling Nominal Capacity 24,000 BTU/h Capacity Range 6,100-25,200 BTU/h Input Power 190-2250W Rated Current 9.5A EER 11.7 SEER2 (Seasonal Energy Efficiency Ratio 2) 21 Rated Heating Nominal Capacity 26,000 BTU/h Capacity Range 6,100-26,000 BTU/h Input Power 190-2250W Rated Current 10.1A COP 11.82 Btu/W HSPF2 (Heating Seasonal Performance Factor 2) 9.6 System Data Design Pressure [PSI Gauge (PSIG)] <651 Refrigerant R410A/56.43 oz. Refrigerant Pre-charge 16.4 ft. Additional charge per ft 0.2 oz. Liquid valve 0.25 in. (6.35mm) Gas valve 0.5 in. (12.7mm) Max refrigerant pipe length 82 ft. Max difference in level 32 ft
